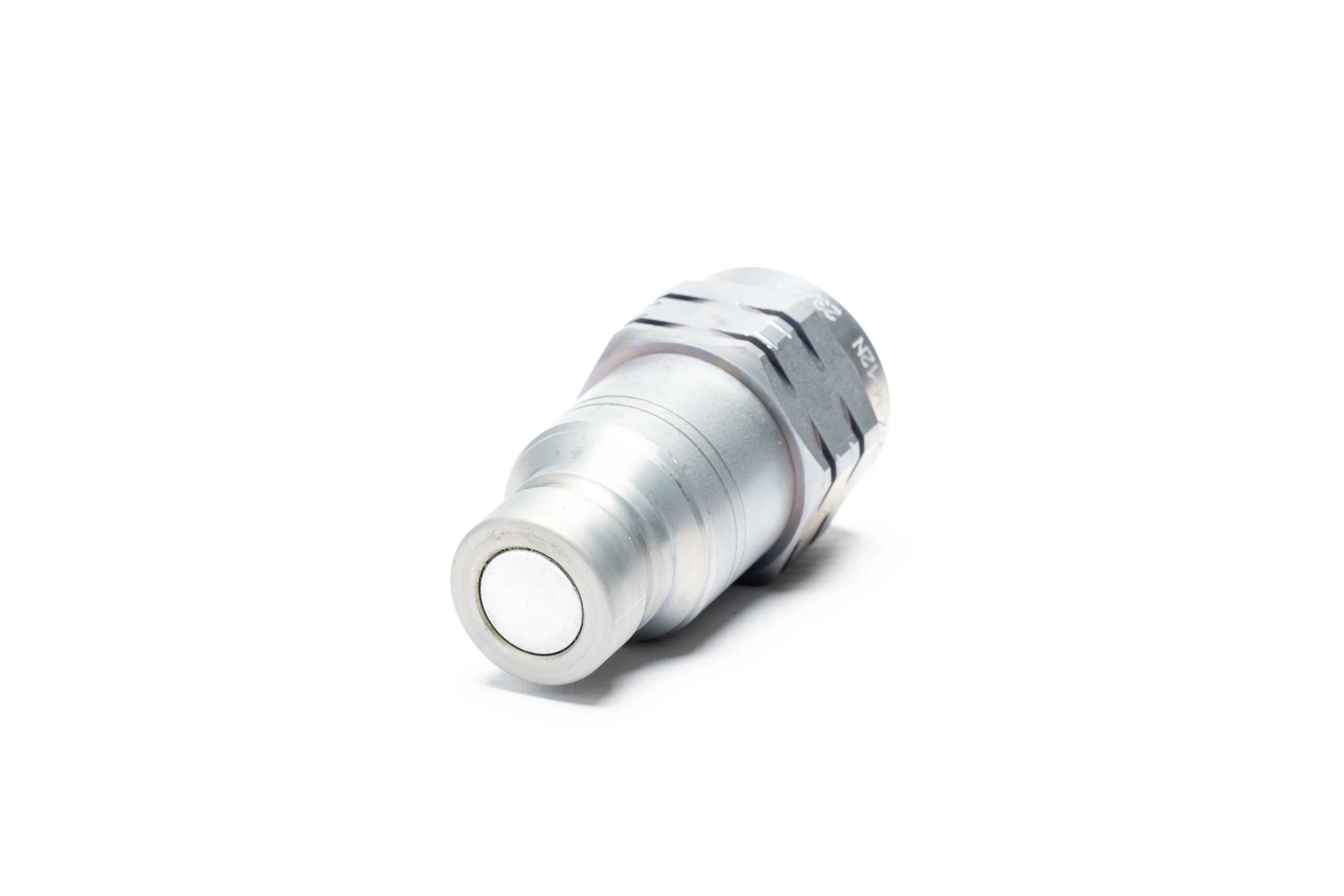

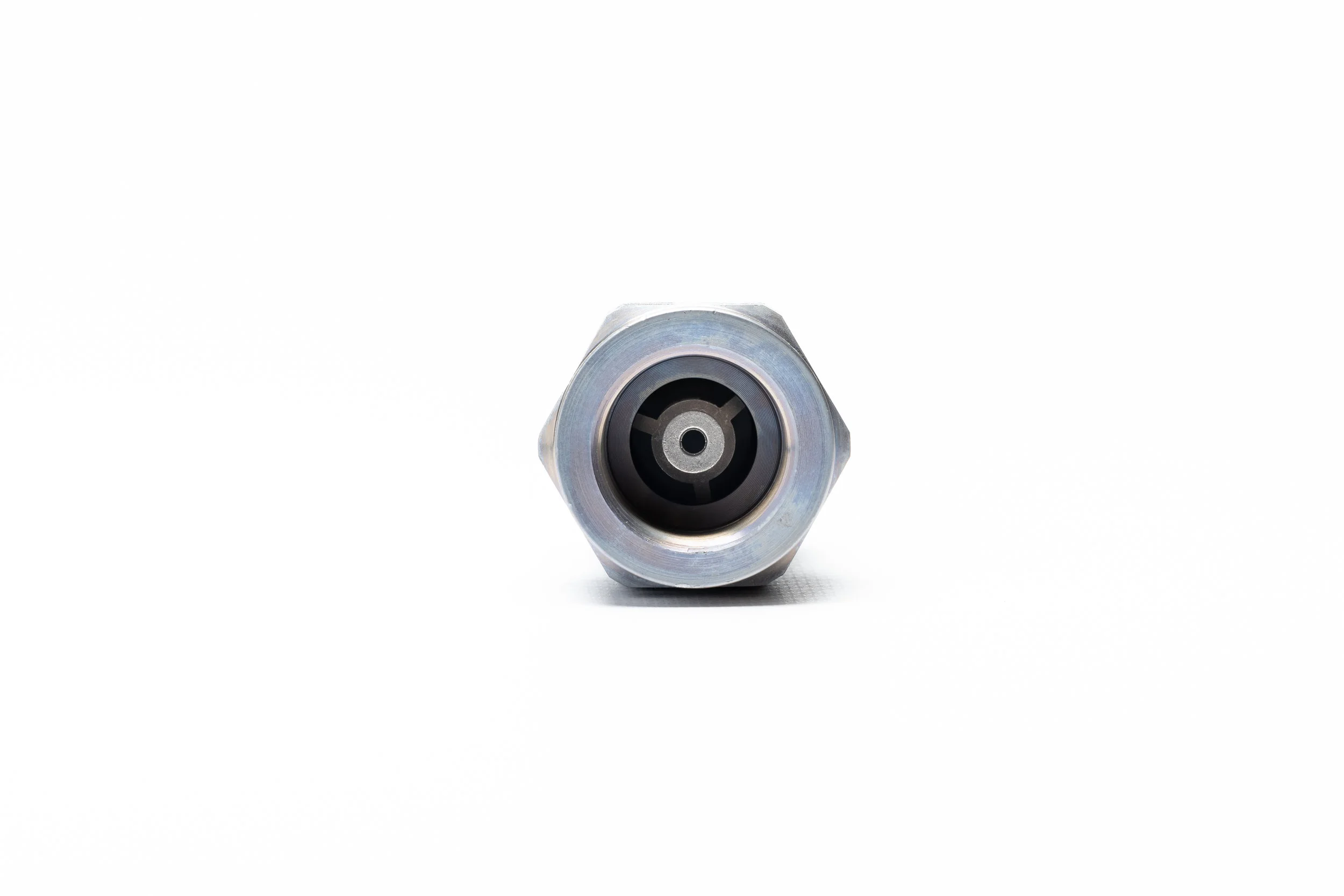

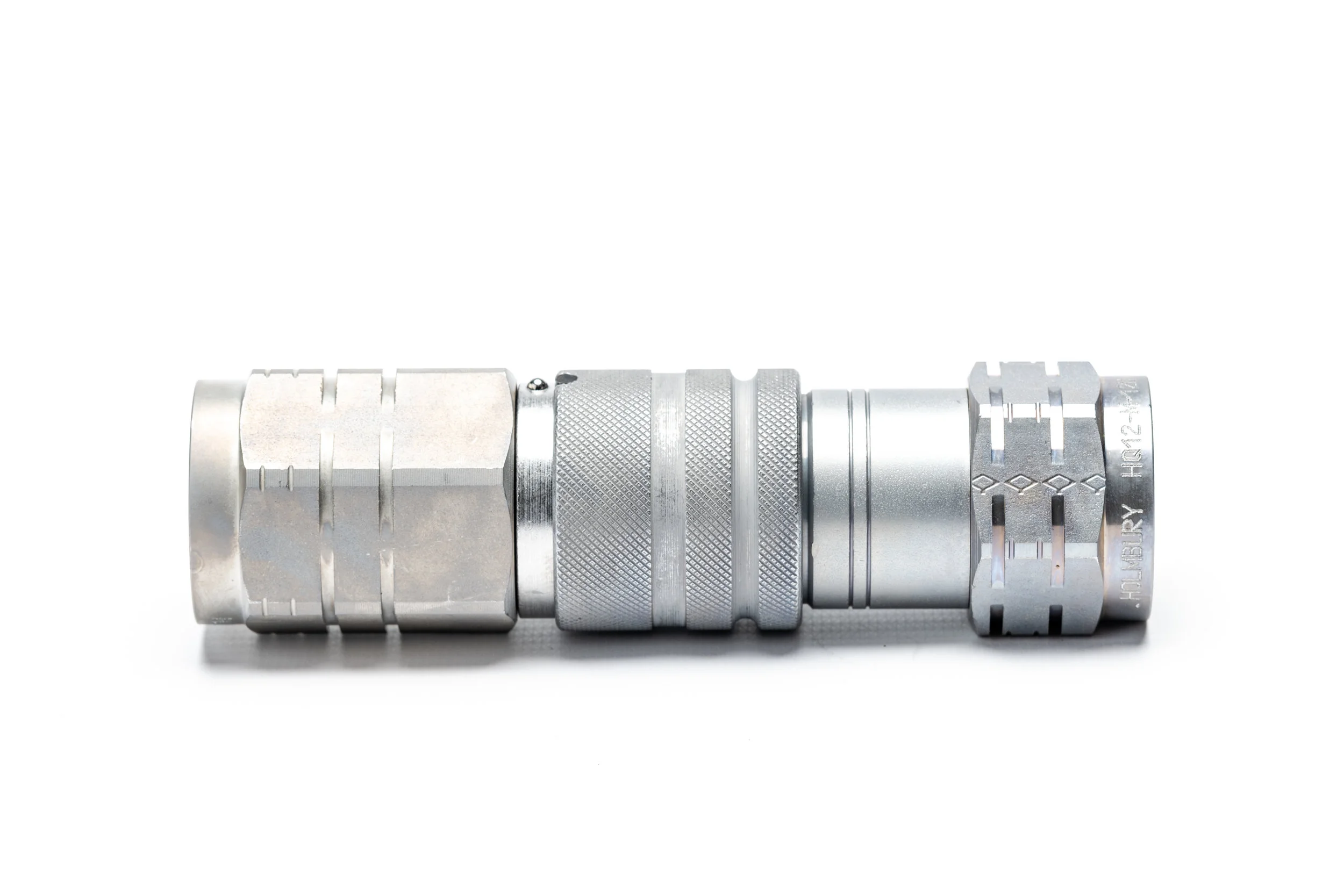

Holmbury 3/4" NPT, 1/2" Body Skid Steer Flat Face Hydraulic Quick Connect Coupler

Always FREE SHIPPING!!!

Customer Service You Can't Beat

McLaren now offers a select lineup of Holmbury Flat Face Couplers. Renown for leak free performance in high pressure pulse, hammer circuits and demanding applications, we sell the OEM Preferred Couplings.

Leak Free Performance  · OEM High Performance Quality You Can Trust · Industry Experience You Can Count On

Since 1982

You will be getting OEM Quality parts that will last 2X-3X the lifespan of any aftermarket hydraulic quick connect coupler, guaranteed. Holmbury Hydraulics has been selling direct to major OEMs including Caterpillar and John Deere for years.

Thread Size: 3/4"

Thread Type: NPT (tapered pipe)

ISO Size (diameter of coupler face): 1/2"

Holmbury MPN: HQ12-F-12N (Female) | HQ12-M-12N (Male)

McLaren MPN: 61X234X14 (Female) | 62X234X14 (Male)

Interchange with most models of skid steers loaders and attachments including

Bobcat, John Deere, CAT, Case, New Holland, Kubota, and many others.

Construction:

• Manufactured in Germany

• Carbon steel with zinc nickel plating (1200 hours with no red rust in salt spray tests)

• Universal quick disconnect interchangeability with other couplings made to ISO 16028 standard

• Dependable quick coupling operation that can be used in high operating pressures and high flow rates

• Long lasting performance

• Couplers have been tested to the ISO 7241-2 Standard

Features:

• Heavy Duty Design with 5075 PSI Rating

• Safety locking sleeve helps prevent accidental disconnections

• Zinc-Nickel plating provides superior corrosion resistance

• Flat face design prevents fluid loss during disconnection and is easy to wipe clean

• Bidirectional flow

• Compact profile with high flow performance

• Harden steel construction with anti-corrosive plating

• Sleeves are hardened to resist deformation and maximize life of the coupler

• Allows for minimal inclusion of air and contaminants during connection

• Valve design that allows for a minimal pressure drops and one hand operation

• Operating temperatures: -40°C (-40°F) to 106°C (223°F)

Included:

• 1 Female Flat Face Coupler

• 1 Male Flat Face Coupler
